Android 9.0 Smart IoT RFID reader – Shine 340 (HH340)

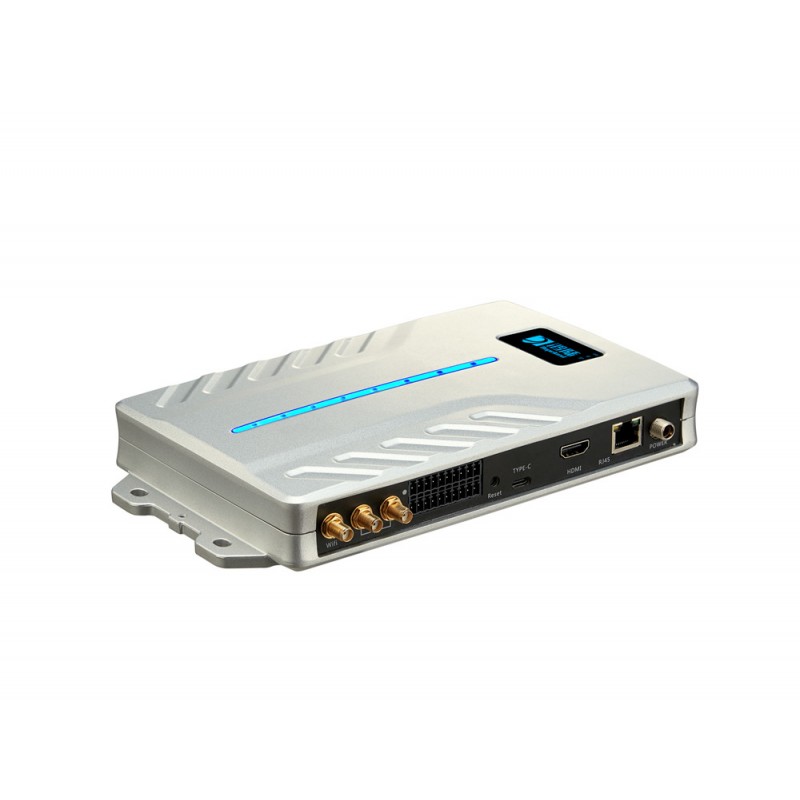

Shine 380 (HH380) New Android UHF RFID fixed reader support 8  antenna ports. Running with Impinj INDY R2000 high performance RFID chipset, and operated on Android 9.0 operation system. Support many communication interface such as built-in 4G, WiFi, and Bluetooth as standard. Optional POE (IEEE 802.3 af/at/bt) supports the full protocol. Shine 380 have built-in web management functions, and advanced functions such as MQTT and HTTP post can be configured through the web interface.

Features Shine 380 (HH380)

  • Powered by Impinj R2000 chipset for maximum tag detection performance.
  • Android OS based open development environment
  • Support MQTT provides real-time, reliable messaging services for connecting cloud servers
  • Support HTTP POST communication to send the tag data to the web URL directly
  • Support to send the tag data to the specified database directly
  • Kinds of communication interfaces: RJ45, RS485, Wiegand, USB，Bluetooth，4G
  • Industrial, installation-friendly I/O connector
  • Support RSSI, antenna detection, online update
  • RSSI & speed filters

Applications Shine 380 (HH380)

  • Vehicle management: automatic parking lots and highways, automatic vehicle weighing.
  • Production line management: intelligent sorting products.
  •  Warehouse management: automatic recording products in and out.
  • Logistics management: container / pallet / asset tracking.
  • Personnel management: School / Factory / Office entrance and exit management.

Parameters Shine 380 (HH380)

HARDWARE, OS AND FIRMWARE MANAGEMENT
Processor MT6765, Octa-Core 2.3Ghz
Memory Flash 16GB; DRAM2GB
Operating System: Android 9.0
Firmware Upgrade Demo software / Web
API Support Android – Java
PHYSICAL CHARACTERISTICS
Dimensions 241mm×132mm×36mm
Weight 1.2Kg
Housing Material Die-cast aluminum
Visual Status Indicators Power/Status, Ant 1-4/8
RFID CHARACTERISTICS
Air Protocols ISO/IEC18000-6B, 6C / EPC C1Gen2 C2GEN2 optional
Frequency USA: 902 MHz-928MHz (FCC part 15)
CN: 920-925MHz (CMIIT)
Russian / Brazil / Korea / Malaysia / Thailand / other customizable
Output Power: 0dBm-35dBm (±1dBm) adjustable
Channel bandwidth: ＜200KHz
Anti-collision Support multi-tag / intensive inventory
Work Mode: Fixed/hop frequency optional
CONNECTIVITY
Communications RJ45, RS-485, OTG, Wiegand
WiFi : 802.11 a/b/g/n/ac
4G：LTE-FDD（CAT-7）/LTE-TDD（CAT-7）/ WCDMA/TD-SCDMA/

EVDO/CDMA/GSM
Bluetooth：BT v2.1+EDR，3.0+HS,v4.1+HS
General Purpose I/O 4 inputs(DC 0~24V), 4 outputs(DC_MAX:30V,2A; AC_MAX:125V,0.3A), optically isolated (Terminal Block)
Power supply DC 24V/2.5A (DC 9V ~ 30V,60W)

or PoE (IEEE 802.3 af/at/bt), support max 33db output
Display interface HDMI, support 720P(default)/1080P

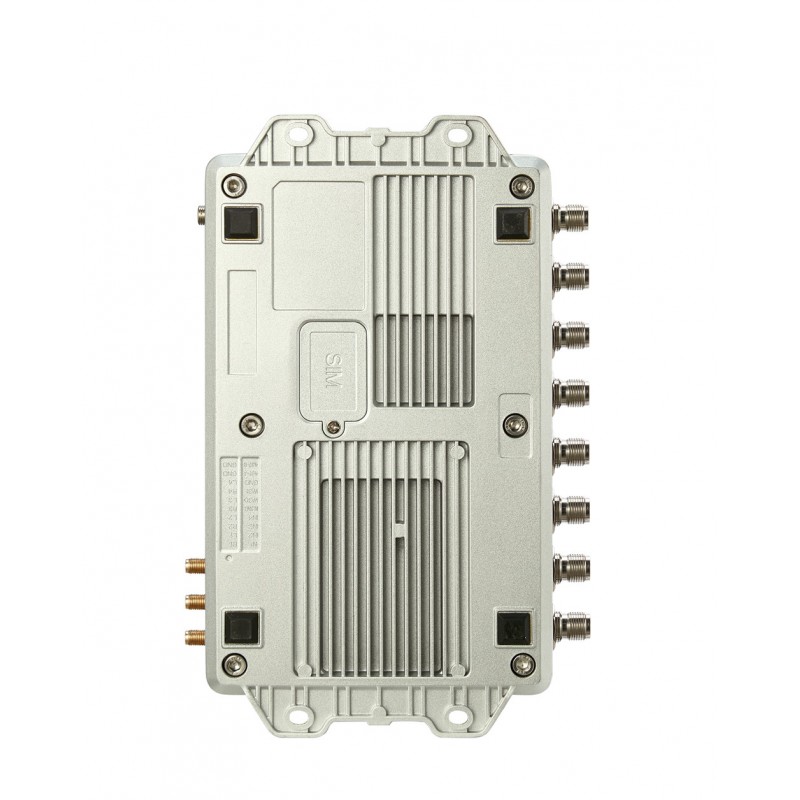

Antenna Ports 8 Reverse Polarity TNC ports; circular or linear polarization; near and far field compatible
ENVIRONMENTAL
Operating Temp. -20 – +70°C
Storage Temp. -40 – +85°C
Humidity 5-90% non-condensing (+25℃)
Sealing IP53
