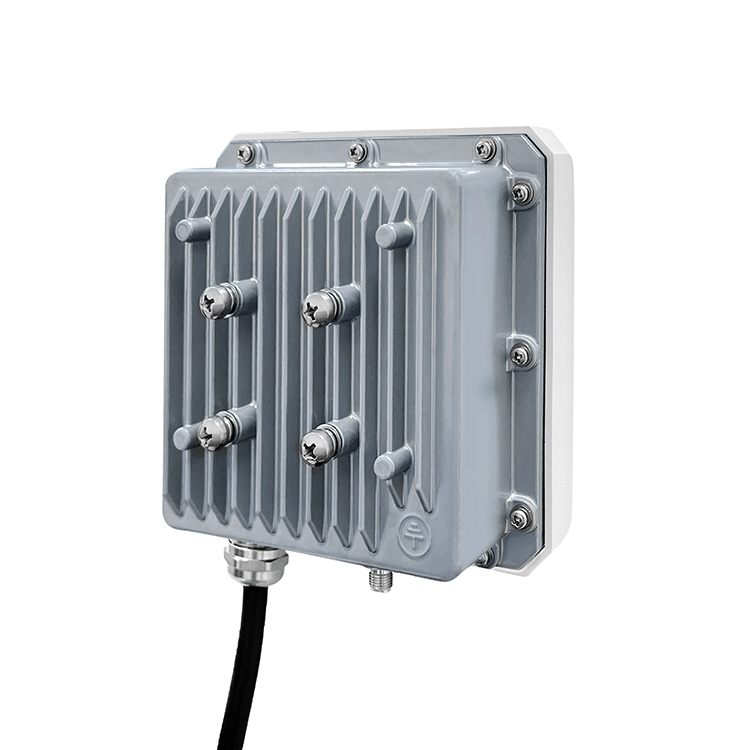

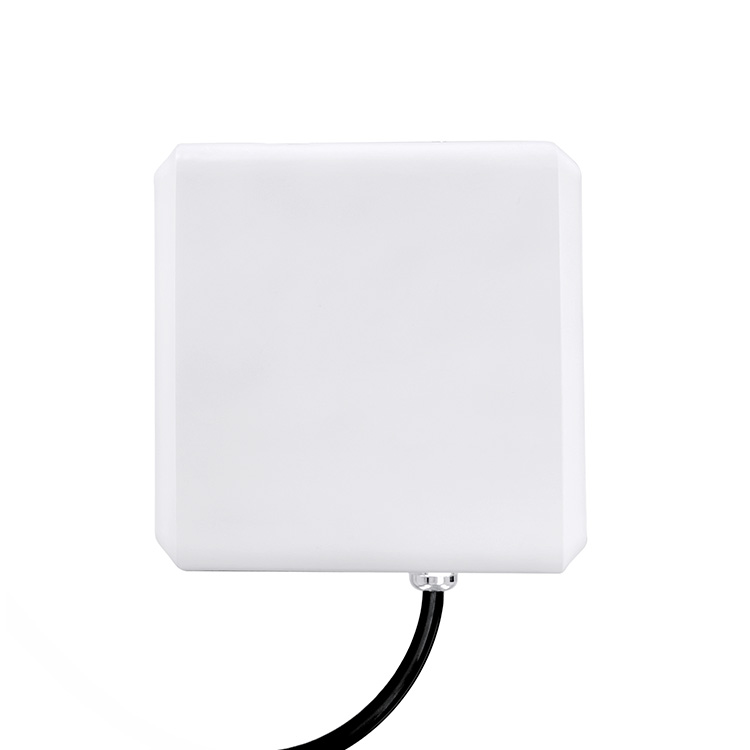

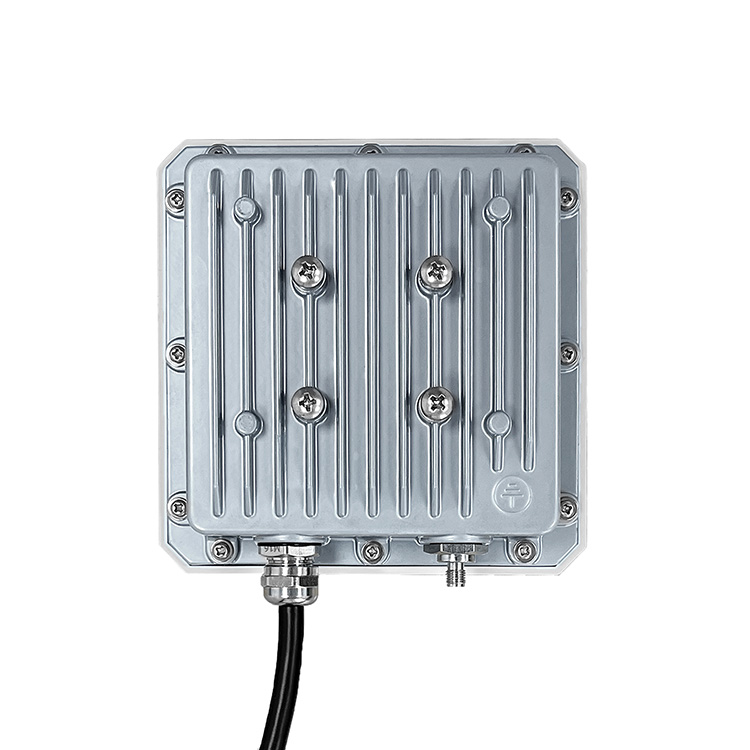

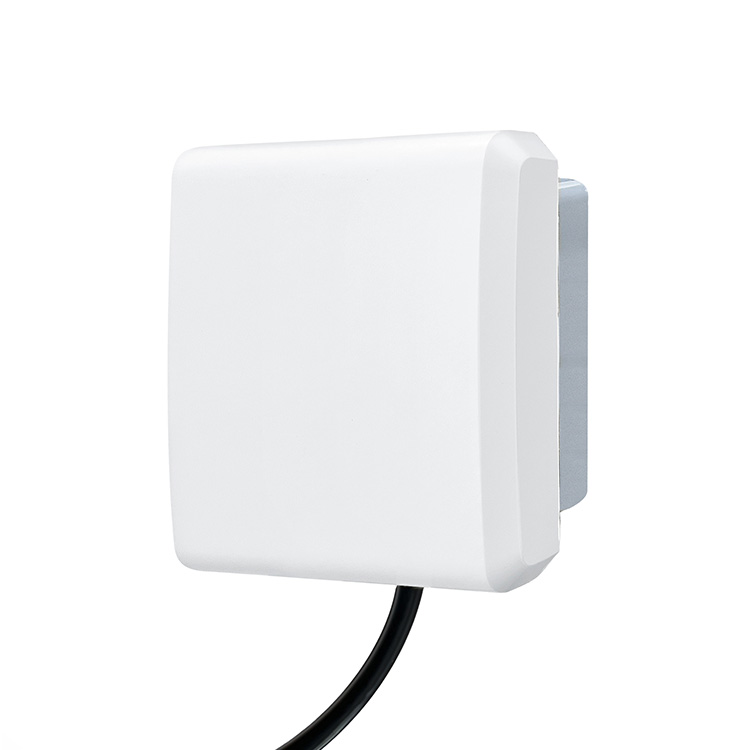

Mini Integrated RFID reader HZ-140

Smart Sereis UHF RFID Mini Integrated Reader  HZ140

• Powered by Impinj RAIN RFID E510 chip for better multiple tags‘ detection performance；
• Delicate and compact design, more friendly with end users ；
• Various communication/software interfaces help to better apply in different application systems;
• Different developing languages SDK meet different developer needs；
• Excellent communication protocol architecture supports faster data processing algorithm；
• Special application projects customized interfaces / data transferring expandable；
• Widely used in a variety of application scenarios, such as workstations, card issuance, retail cash register, card slots, access control, etc.

• Hardware and Firmware

  Firmware Upgrade	Demo Software
  API Support	Windows platform Android platform Linux platform

• Physical Characteristics

  Dimensions	133mm(L)*133mm(W)*52mm(H)
  Weight	0.75kg
  Housing Material	Die-cast aluminum / ABS cover

• RFID Characteristics

  Air Protocols	ISO/IEC18000-6C / EPC C1Gen2
  Chipset	Impinj RAIN RFID E510 (E310 optional)
  Frequency	USA: 902 MHz-928MHz (FCC part 15) EU: 865-868MHz (ETSI EN 302208) CN: 920-925MHz (CMIIT)
  Built-in antenna	Circular 6dBi
  Reading Distance	0-12m (According to Tag & Environment)

• Connectivity

  Communications	RJ45, RS-232, RS-485 in standard Wiegand (26 34 66) and IO same interface, Wi-Fi 802.11b/g/n /Bluetooth BLE4.2 + SPP3.0 optional
  General Purpose I/O	1 input(DC 0~24V), 2 outputs (5V shared with wiegand function)
  Power supply	DC 24V/2.5A (DC 9V ~ 30V, 10W)
