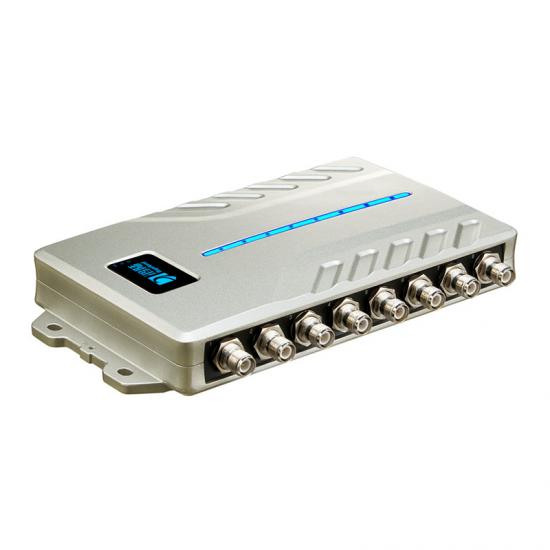

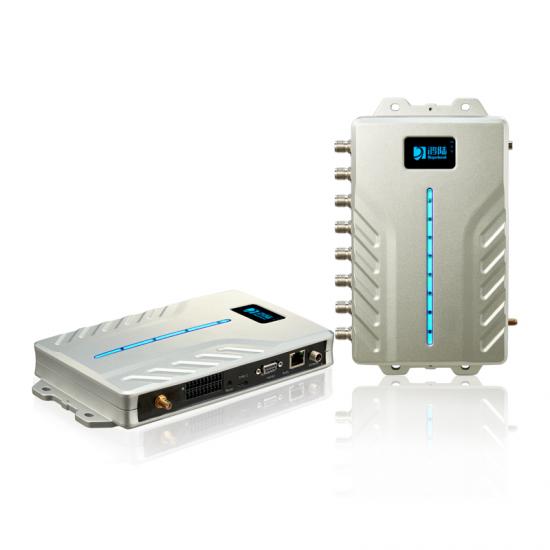

Sharp 380 (model number: HF380) are Hopeland new designed masterpiece –standard expandable UHF RFID reader, which running with Impinj INDY R2000 high performance RFID chipset, and operated on Linux 2.6 operation system. 4-Port /8-port optional. It supports off-line working for 40,000pcs of tags since with 2GB RAM and 16G ROM capacity. It also has wireless function as WiFi, Bluetooth, 4G, with USB, RJ45, RS232 and I/O communication interfaces, POE optional. Moreover, webpage interface supportable.
| HARDWARE, OS AND FIRMWARE MANAGEMENT | |
| Processor | ARM9, 400MHz |
| Memory | Flash 128MB; DRAM 32 MB |
| Operating System: | Linux 2.6 |
| Firmware Upgrade | Demo software |
| API Support | C#. Android – Java |
| PHYSICAL CHARACTERISTICS | |
| Dimensions | 241mm×132mm×36mm |
| Weight | 1.2Kg |
| Housing Material | aluminum |
| Visual Status Indicators | Power/Status, Ant 1-4/8 |
| RFID CHARACTERISTICS | |
| Air Protocols | ISO/IEC18000-6B, 6C / EPC C1Gen2 C2GEN2 optional |
| Frequency | USA: 902 MHz-928MHz (FCC part 15) |
| EU: 865-868MHz (ETSI EN 302208) | |
| Reading range | 0-20m |
| Output Power: | 0dBm-35dBm (±1dBm) adjustable |
| Channel bandwidth: | ＜200KHz |
| Anti-collision | Support multi-tag / intensive inventory |
| Work Mode: | Fixed/hop frequency optional |
| CONNECTIVITY | |

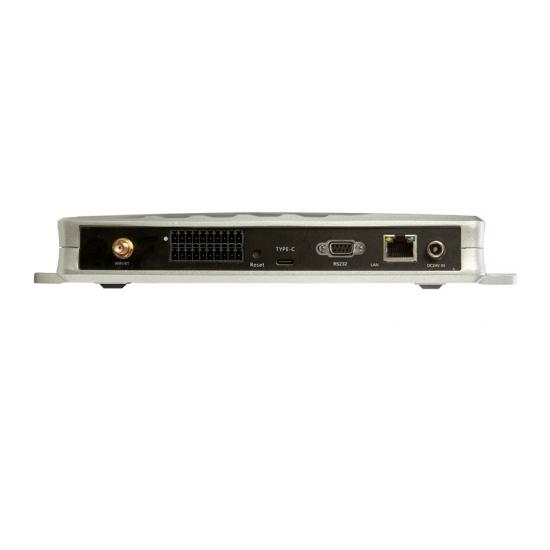

| Communications | RJ45, RS-485, OTG, Wiegand |
| General Purpose I/O | 4 inputs(DC 0~24V), 4 outputs(DC_MAX:30V,2A; AC_MAX:125V,0.3A), optically isolated (Terminal Block) |
| Power supply | DC 24V/2.5A (DC 9V ~ 30V,60W)
or PoE(IEEE 802.3 af/at/bt) |
| Antenna Ports | 4 Reverse Polarity TNC ports; circular or linear polarization; near and far field compatible |
| ENVIRONMENTAL | |
| Operating Temp. | -20 – +70°C |
| Storage Temp. | -40 – +85°C |
| Humidity | 5-90% non-condensing (+25℃) |
| Sealing | IP53 |
